Web User Interface - Statistics
Statistics
Many counters are available to help with the diagnostic of network problems for the DALI, BACnet and Ethernet interfaces.
System Log
Displays the system log file that records certain system events.

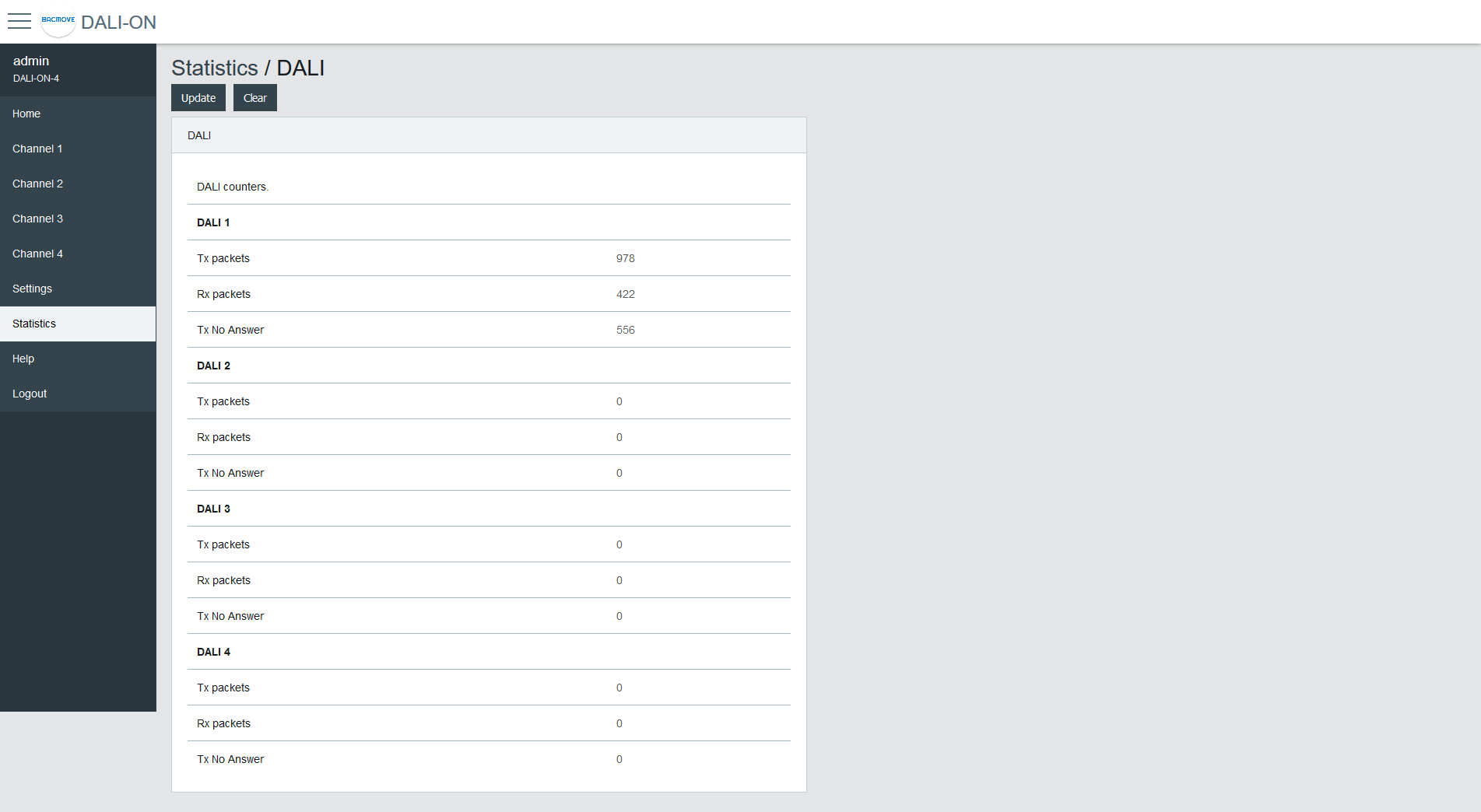

DALI
Many counters are available to help with the diagnostic of DALI related problems.
| Name | Description |
|---|---|
| Tx Packets | The number of packets transmitted |
| Rx Packets | The number of packets received |
| Tx No Answer | The number of transmission with a missing answer |
| Rx Bit Timing Violation | The number of bit timing violation detected |
| Tx Collision Avoidance | The number of collisions avoided |
| Tx Collision Detection | The number of collisions detected |
| Tx Timeout Override | The number of canceled transmissions |
| DT8 Combine Performed | The number of times a level write and a colour write were merged into a single combined fade |
| DT8 Overlap Combines | The number of combined fades merged across different targets sharing the same lamps, for example a level written to a sub-group and a colour written to a larger group. These are also counted in DT8 Combine Performed |
| DT8 Tracker Evictions | The number of times the pending write memory was full and the oldest tracked target was dropped, normally 0 |

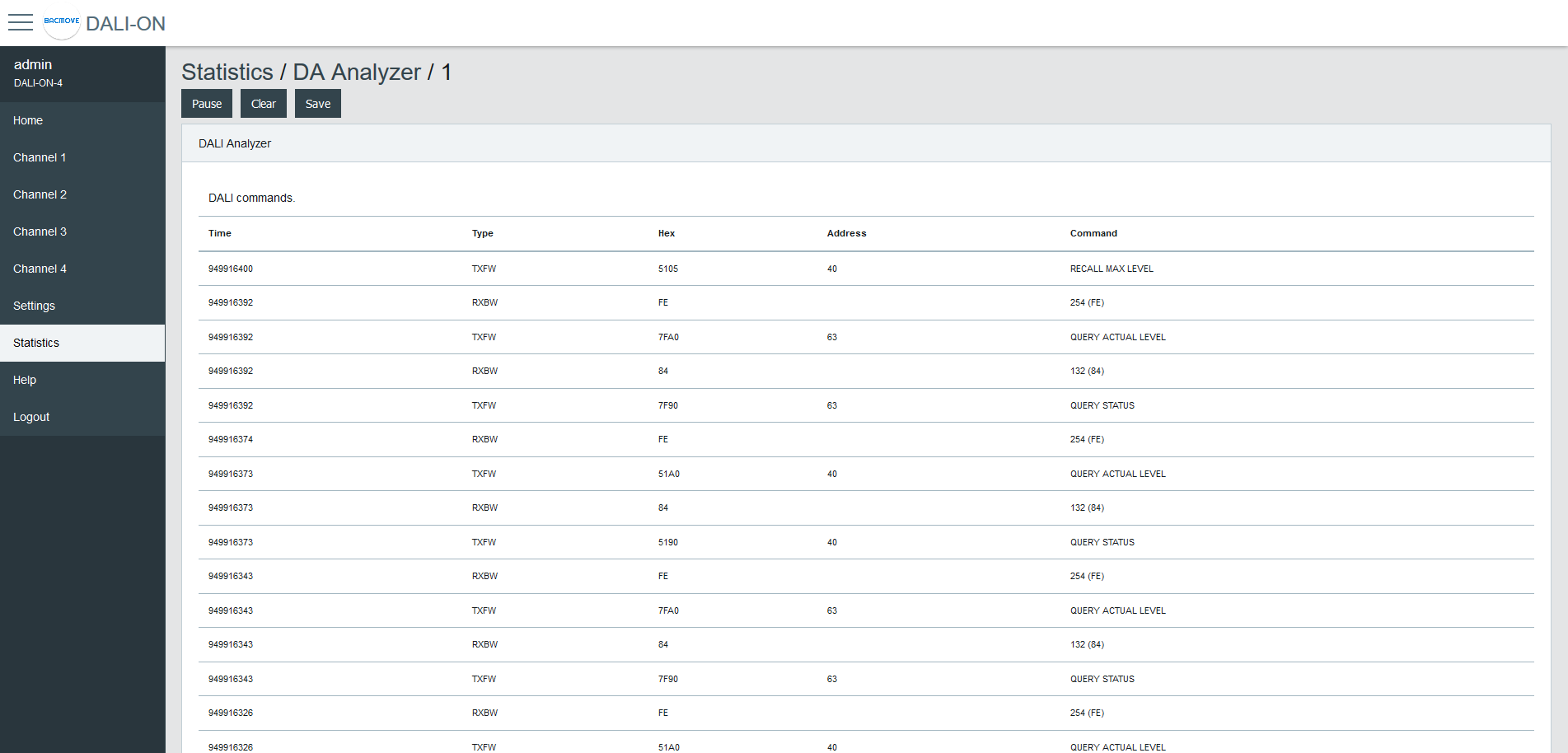

DALI protocol analyzer
The analyzer allows network troubleshooting and analysis of the DALI communication protocol. It displays in real time the received and transmitted DALI packets. It is possible to Pause, Clear or Save the data to the computer with the buttons.
| Name | Description |
|---|---|
| Time | The time the packet was received or transmitted |
| Type | The packet type |
| Hex | Hexadecimal raw data of the packet |
| Address | The packet destination address |
| Command | The command |
Packet Type
| Name | Description |
|---|---|
| TXFW | Transmission of a forward frame |
| TXBW | Transmission of a backward frame |
| RXFW | Reception of a forward frame |
| RXBW | Reception of a backward frame |
BACnet/IP
Many counters are available to help with the diagnostic of BACnet related problems.
| Name | Description |
|---|---|
| Tx Packets | The number of packets transmitted |
| Rx Packets | The number of packets received |
| Dropped Packets | The number of dropped packets |
| BVLC Last Result | The last result of BVLC |
| Invoke ID Unavailable | The number of time a new Invoke ID was unavailable |
| Invoke ID Failed | The number of failed Invoike ID |
| Task Time | Timing of the BACnet task |
| Task Time Error Count | The number of BACnet task timing errors |
| Last Task Time Error | The Last BACnet task timing error |
BACnet Active COV Subscriptions
Displays the list of currently active COV-B subscriptions.

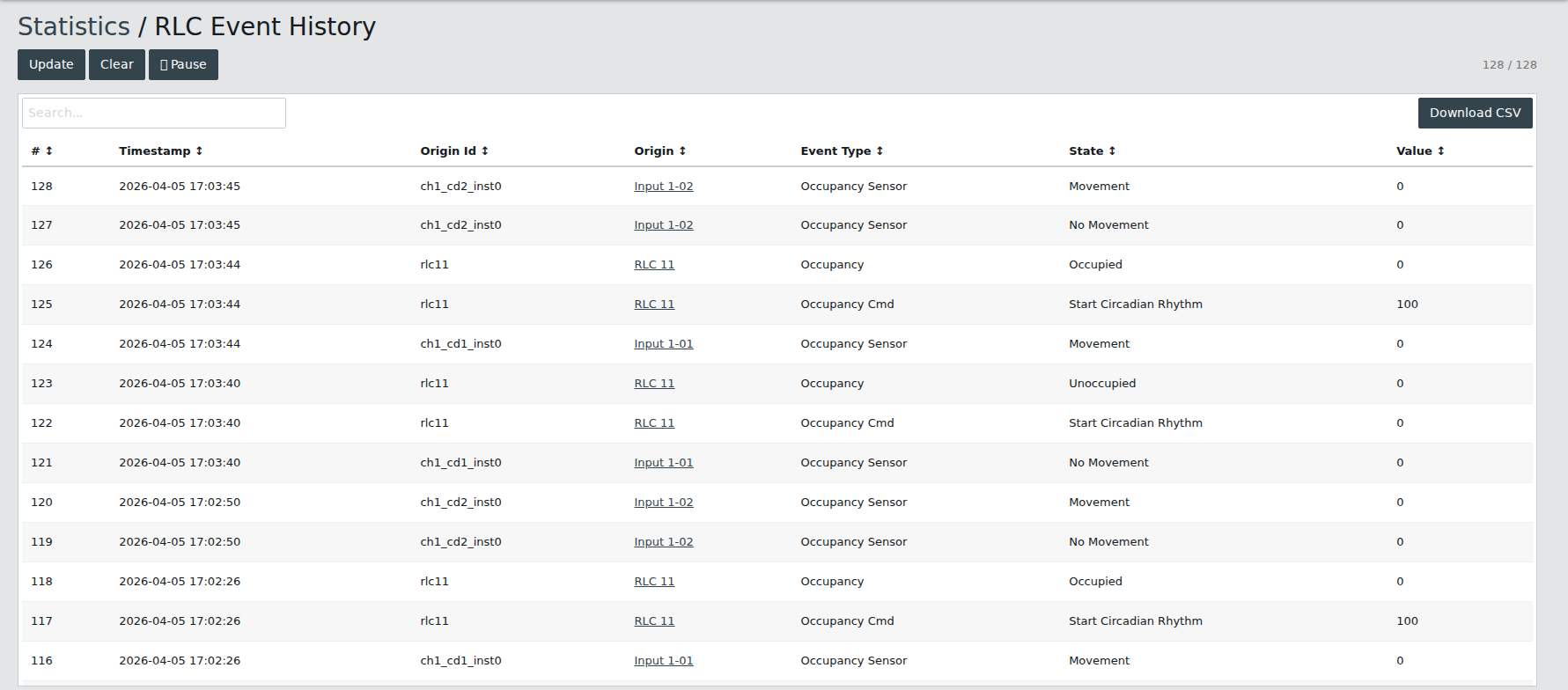

RLC Event History
Displays the Room Light Control event history used for diagnostics and troubleshooting.
Network Control (sACN / Art-Net / Modbus TCP)
Counters for the network control receiver module.
| Name | Description |
|---|---|
| Enabled | Whether the network control receiver is enabled |
| Protocol | The active protocol (sACN, Art-Net, or Modbus TCP) |
| Universe / Port-Address | The configured sACN universe or Art-Net port-address |
| Source Active | Whether a source is currently sending data |
| Frames Received | The number of accepted frames |
| Frames Dropped | The number of discarded frames (bad parse, wrong universe, or sequence error) |
IP
Many counters are available to help with the diagnostic of problems with the IP (Internet Protocol) communication stack.
TCP
Many counters are available to help with the diagnostic of problems with the TCP (Transmission Control Protocol) communication stack.
UDP
Many counters are available to help with the diagnostic of problems with the UDP (User Datagram Protocol) communication stack.
ARP
Many counters are available to help with the diagnostic of problems with the ARP (Address Resolution Protocol) communication stack.
ICMP
Many counters are available to help with the diagnostic of problems with the ICMP (Internet Control Message Protocol) communication stack.
ARP Table
This page displays the current ARP (Address Resolution Protocol) cache where IP addresses are associated with Ethernet MAC addresses.
IP Memory
This page displays the current memory usage of the IP stack.
Ethernet
This page displays the current value of some Ethernet registers.
General
This page displays general counters and memory usage.
System Tasks
This page displays the task usage.
File System
This page displays the file system usage.
